DETAILS AT A GLANCE


  • 1500m cable length and 28 tonne weight
  • 11,000V 350A electrical supply
  • Suspended from the surface only
  • 11kV switchgear enclosure included
  • Unique cable clamps designed specifically for the job to reduce borehole size by 30%
  • This is the second vertical cable install completed by Murray Engineering at the client’s mine site
Download Case Study

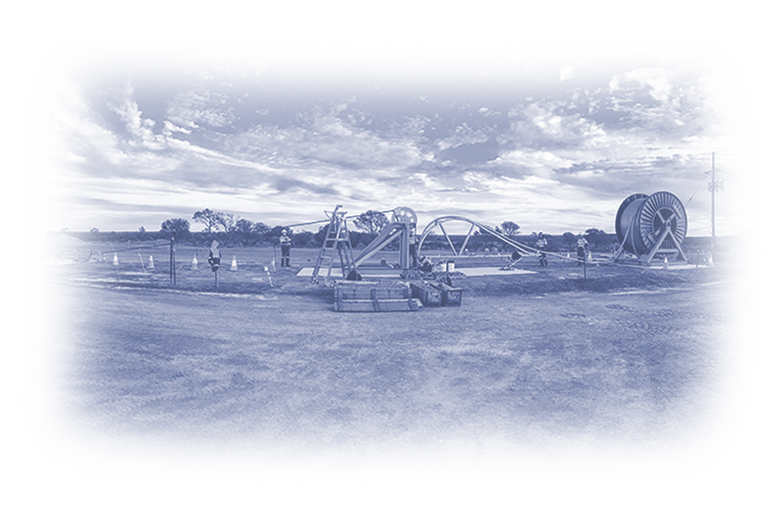

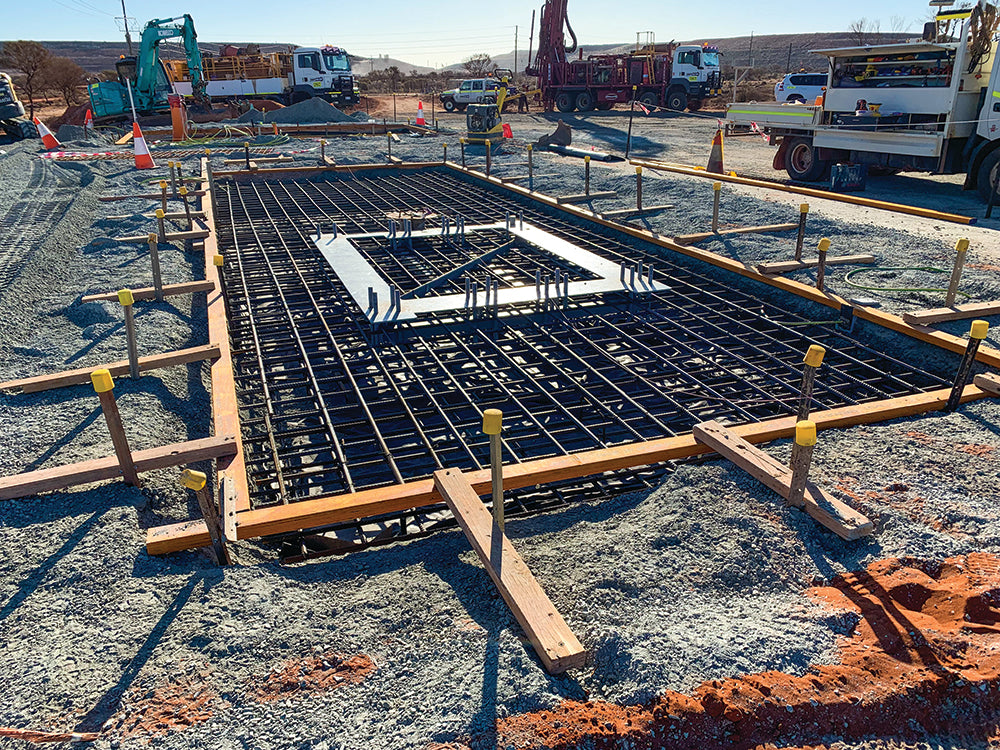

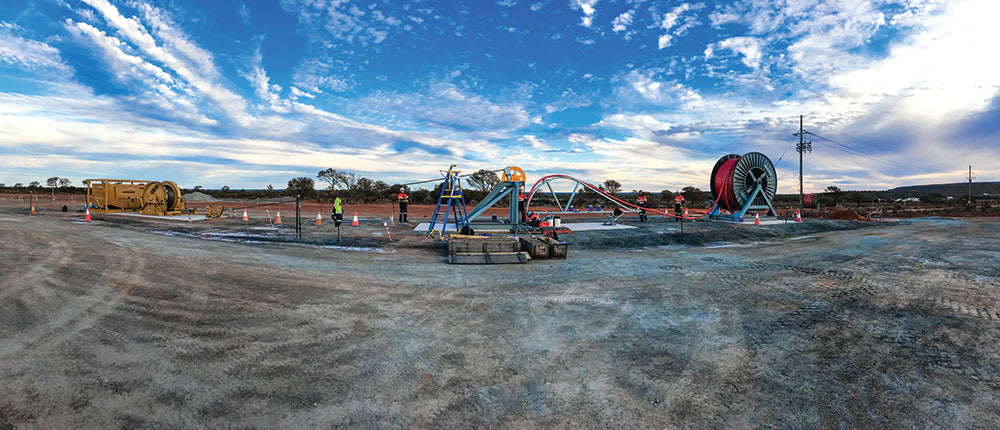

Murray Engineering was engaged to install a second vertical cable from the surface of a working mine, with zero interruptions to daily mining operations or ore haulage. The Murray Engineering team designed and installed concrete footings, a winch assembly, sheave assembly and final support structure. Murray also developed the installation methodology, and commissioned the project on site, including civil works.

The mine site is the deepest operating mechanised mine in Australia. The client recognised that this would result in a huge cost to install electrical cable via traditional methods (i.e. decline and service hole).

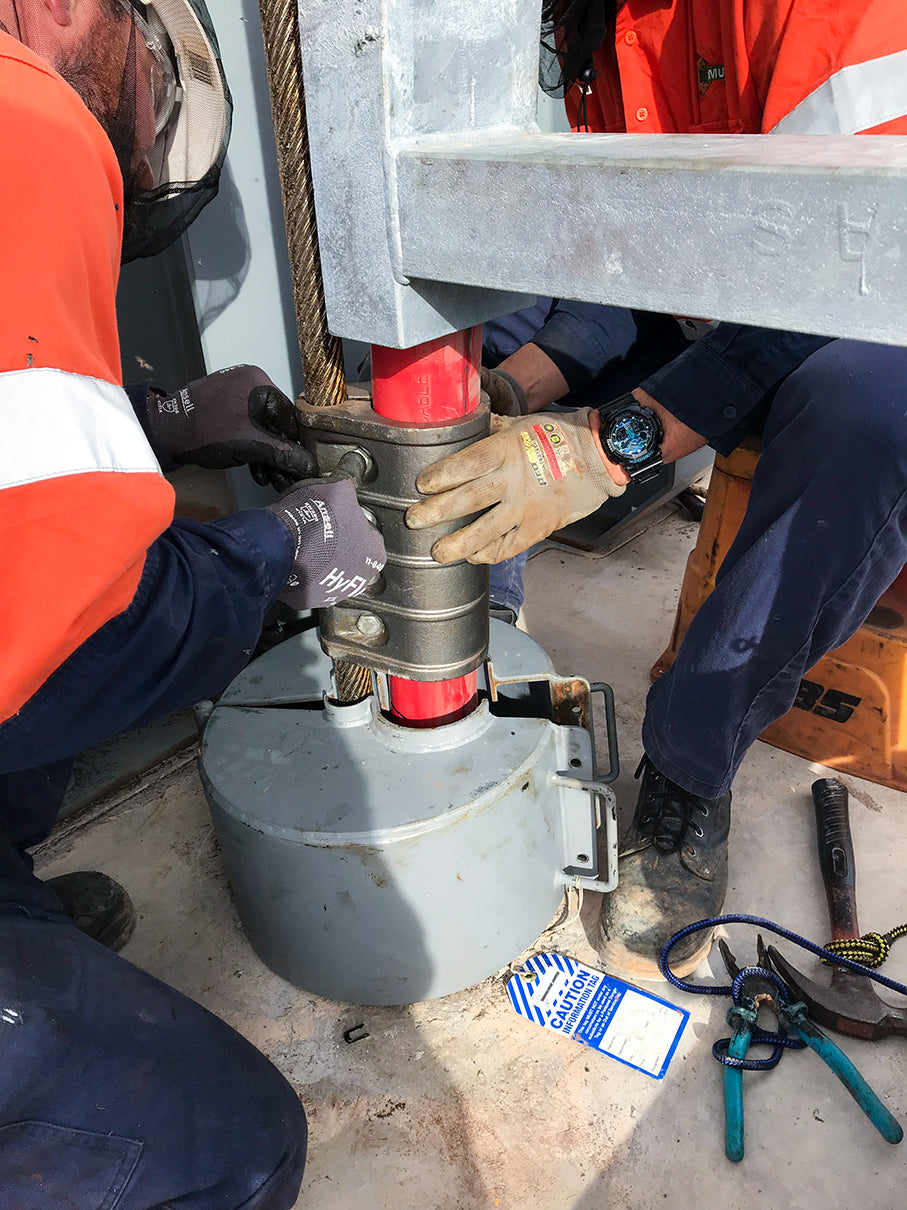

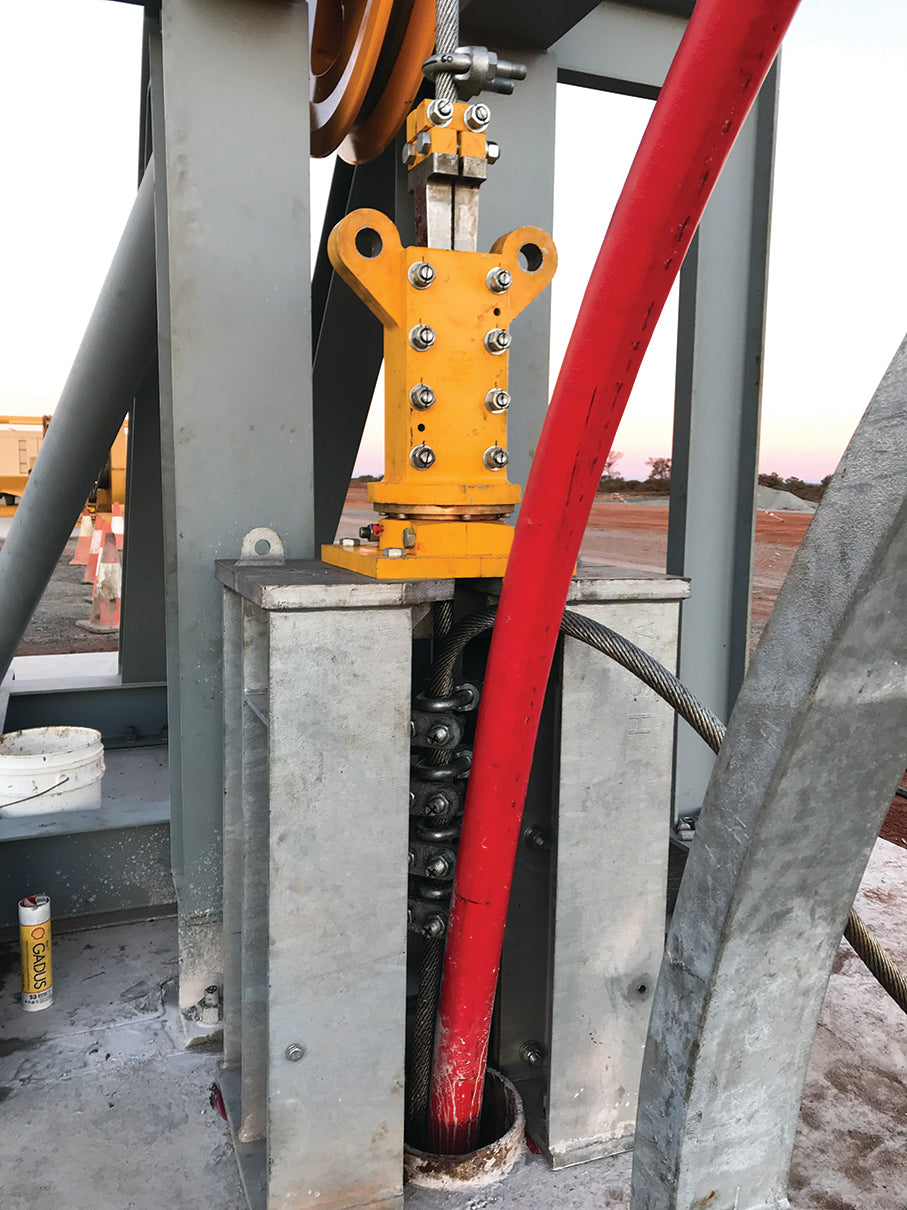

The depth of the mine required specialised engineering in order to safely complete the cable lowering operation. This also incorporated an engineered and certified cable clamp design developed by Murray Engineering. These clamps are smaller in dimension than traditional clamps used for vertical cable installations, and resulted in a 30% reduction in borehole size. Critical infrastructure components were manufactured in our facilities ahead of time, to minimise installation time on-site.

The ability to install the cable vertically without shutting down areas of the mine, combined with a reduced bore-hole size that minimized drilling time, resulted in significant cost savings for the client.

Other vertical cable installations completed:

Northern Goldfields Mine

  • 1200m cable length
  • 20T weight
  • 11,000V 300A electrical supply
  • Suspended from the surface
  • 11kV switchgear enclosure included

Victorian Mine

  • 440m cable length
  • 10T weight
  • 11,000V 300A electrical supply
  • Suspended from the surface
