INNOVATIVE SOLUTIONS

Vertical cable installation projects require precise engineering and unique solutions to result in the best outcomes for our customers.

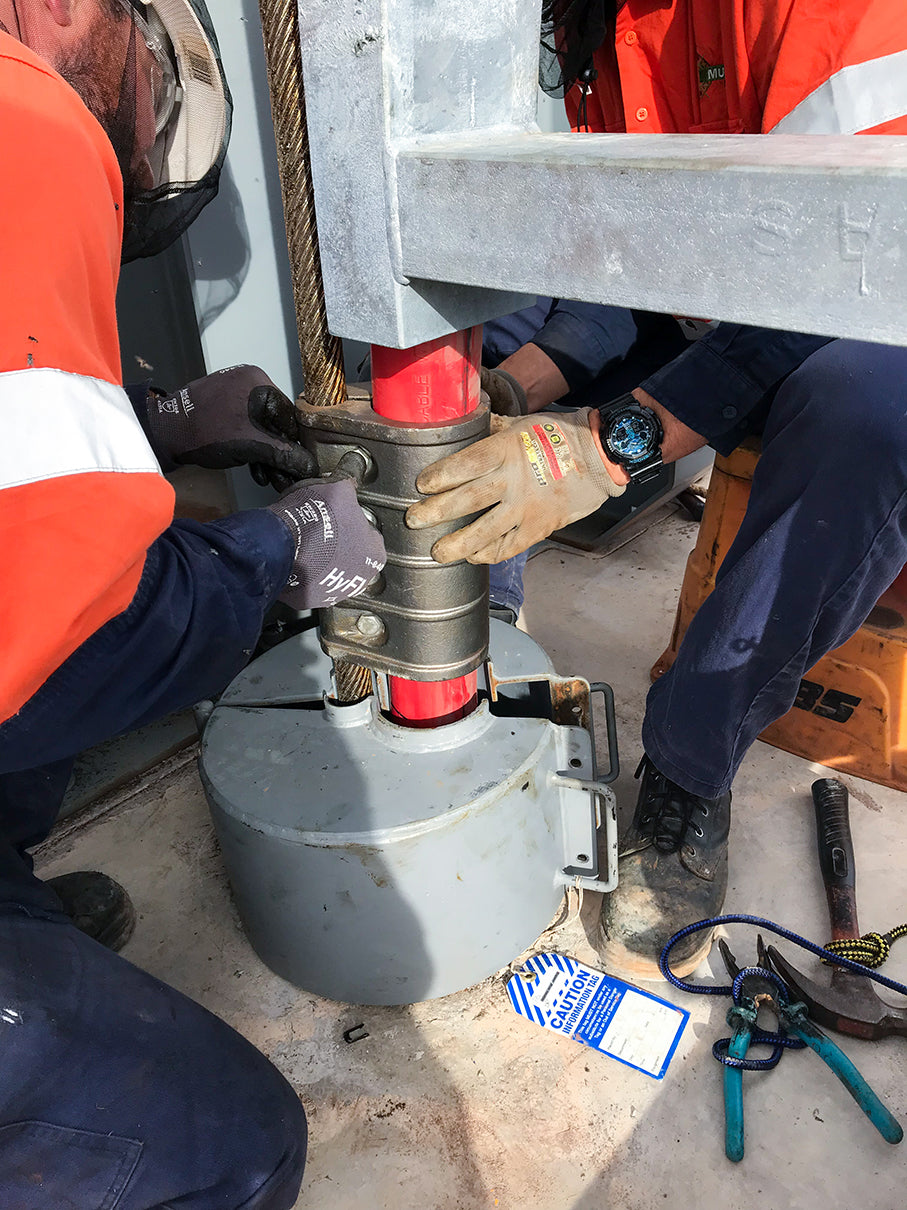

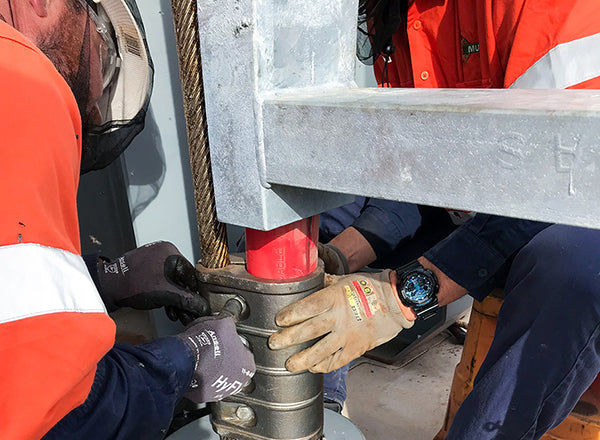

That is why our vertical cable installation projects incorporate an engineered and certified cable clamp design developed by Murray Engineering. These clamps are smaller in dimension than traditional clamps used for vertical cable installations and result in a 30% reduction in borehole size.

This reduces drilling time, culminating in significant cost reductions. We also manufacture critical infrastructure components in our facilities ahead of time, to minimise on-site installation times and delays in the construction chain.


Benefits of vertical cable installations:

Benefits

Benefits

  • Minimal disruption to normal mining activities
  • Savings of hundreds of thousands of dollars compared to other cable installation methods
  • Short installation and commissioning period on site
  • Easy to upgrade the existing power supply using this method
  • Vertical cable installations are suitable for even extremely deep mines – including the deepest operating mechanised mine in Australia.

side_image

COMPLETED PROJECTS

Northern Goldfields mine site:

Key Project Details:

  • 1500m cable length and 28-tonne weight
  • 11,000V 350A electrical supply
  • Suspended from the surface only
  • 11kV switchgear enclosure included
  • Unique cable clamps designed specifically for the job to reduce borehole size by 30%
  • This is the second vertical cable install completed by Murray Engineering at the client’s mine site

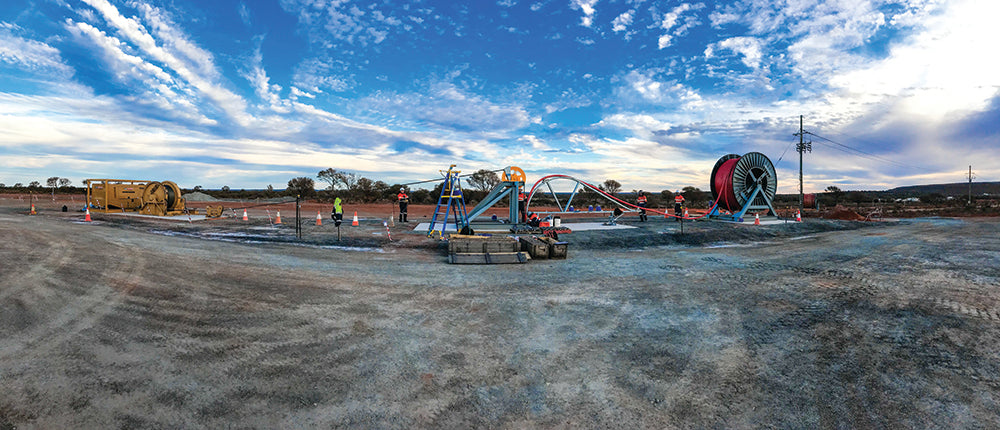

A northern WA Goldfields mine site required an electrical upgrade to supply power direct to an underground crusher circuit. This mine site is the deepest operating mechanised mine in Australia. Murray Engineering designed, constructed and installed a vertical cable installation system to deliver the required upgrade without interruption to normal mining activities. This method saved the client hundreds of thousands of dollars and was installed and fully commissioned in just nine days on-site, with zero interruptions to daily mining operations or ore haulage.

Northern Goldfields mine site:

Key Project Details:

  • 1200m cable length
  • 20T weight
  • 11,000V 300A electrical supply
  • Suspended from the surface
  • 11kV switchgear enclosure included

Victorian mine site:

Key Project Details:

  • 440m cable length
  • 10T weight
  • 11,000V 300A electrical supply
  • Suspended from the surface

left_side_image

UNDERGROUND CABLE INSTALLATION

With decades of experience, Murray Engineering also supplies and installs short cable runs to project infrastructure, such as ventilation fans and pump starters.

We also install heavy-duty flexible cables in underground mining operations in multiple voltage configurations.

With a proven track record servicing some of the biggest brands across mining and industry, Murray Engineering is a world-class provider focused on delivering value to our clients.

Contact us today to discuss your exact requirements.
